10-Pack 433MHz Wireless Transmitter and Receiver Kit - RF Remote Control Module for DIY Electronics, Home Automation, and IoT Projects | Long Range Signal Transmission for Smart Devices

100% Brand New and High Quality.

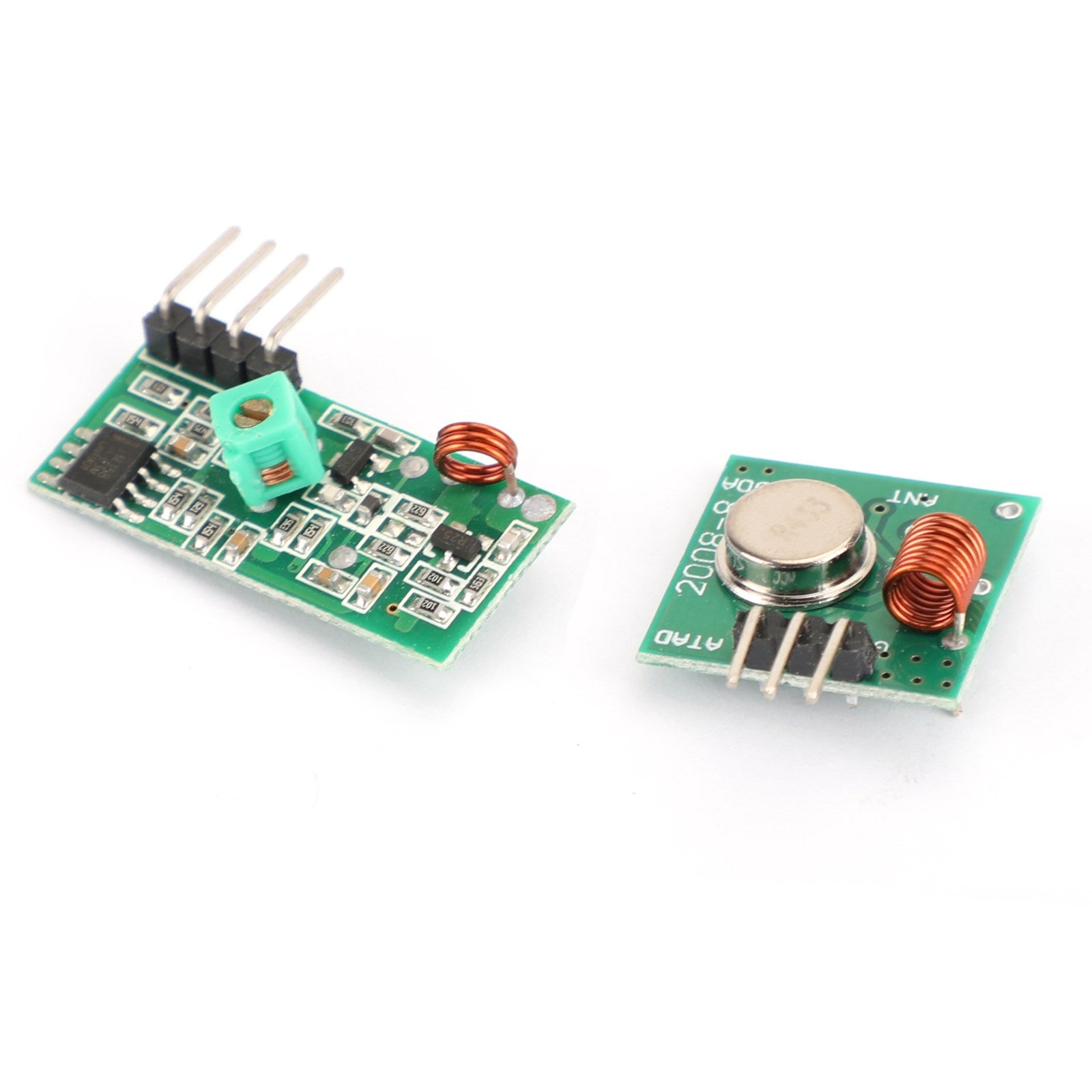

Shape: Same as the picture show

Type: 433MHZ Transmitter

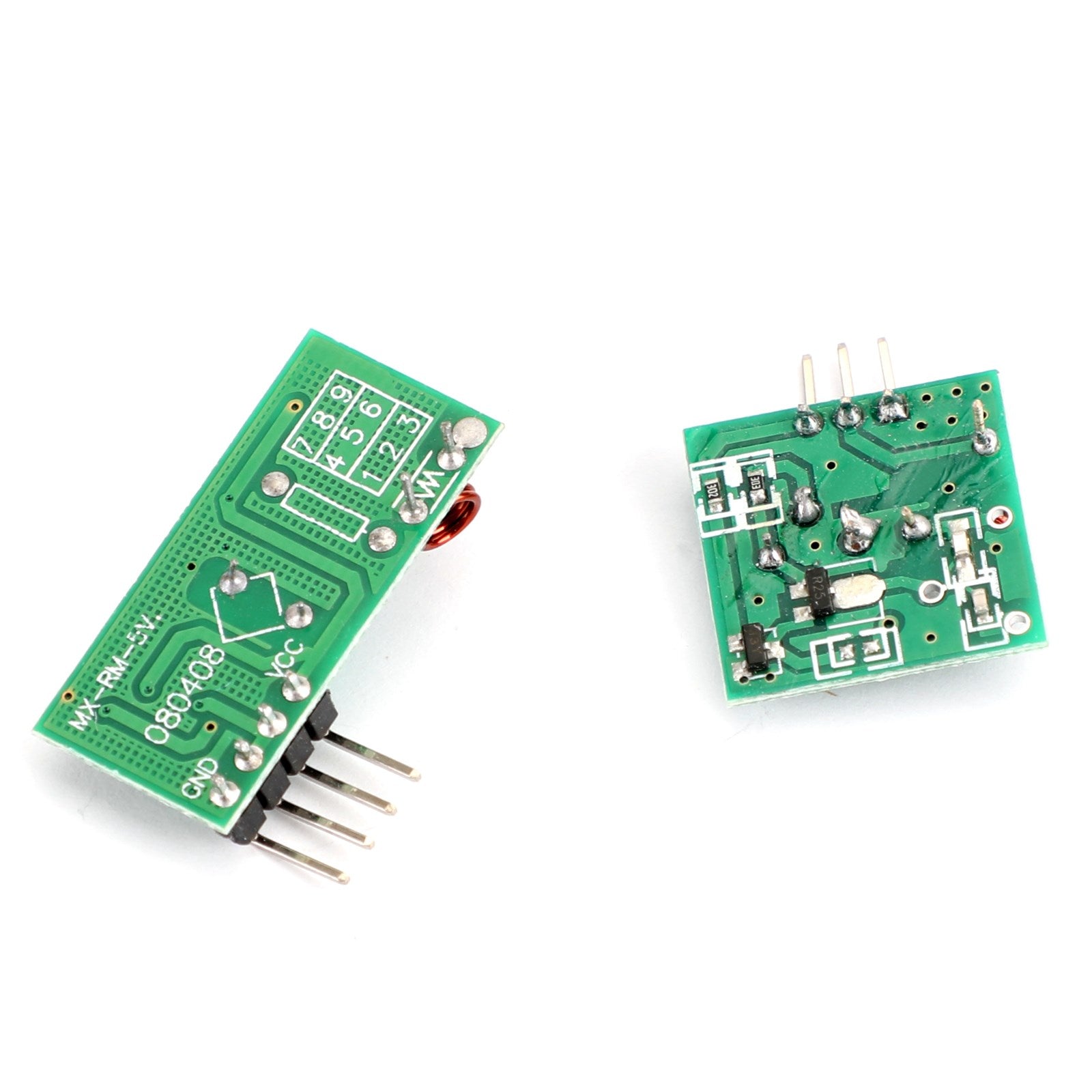

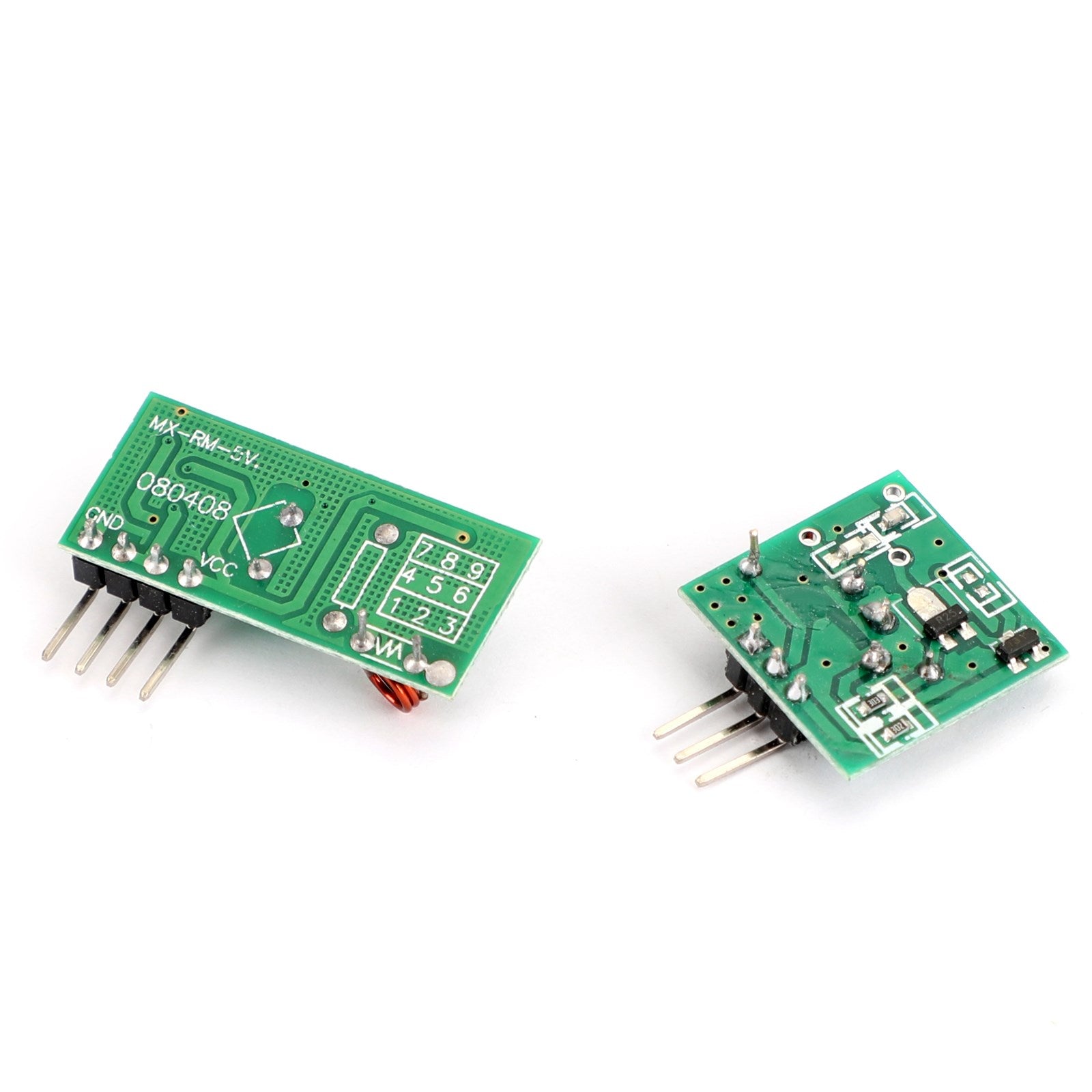

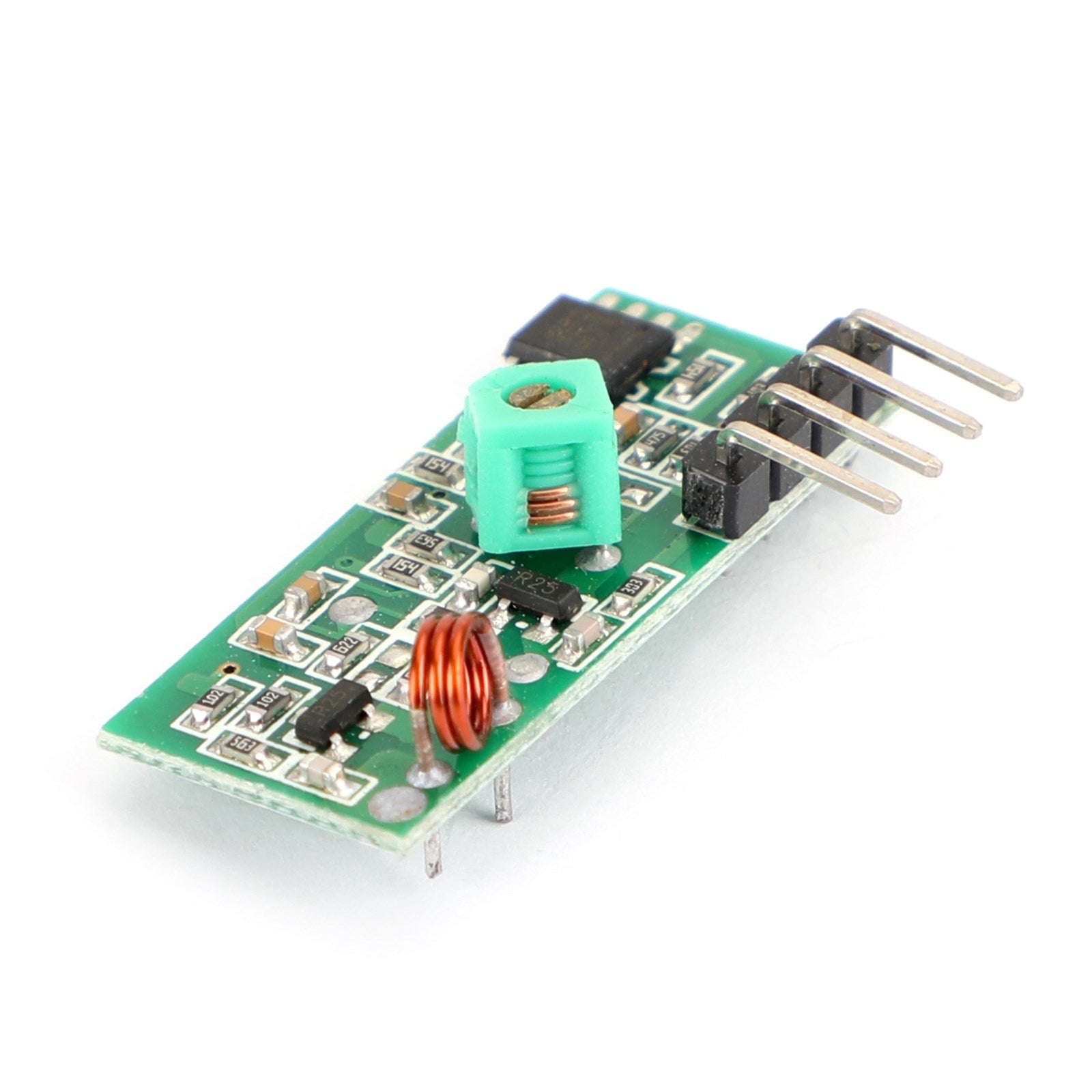

Receiver module Technical parameters:

1. Product Type MX-05V

2. Operating voltage: DC5V

3. Quiescent current: 4MA

4. Receiving frequency: 433.92MHZ

5. Receiver sensitivity: -105DB

6. Size: 30 * 14 * 7mm

7. External antenna: 32CM single core, wound into a spiral

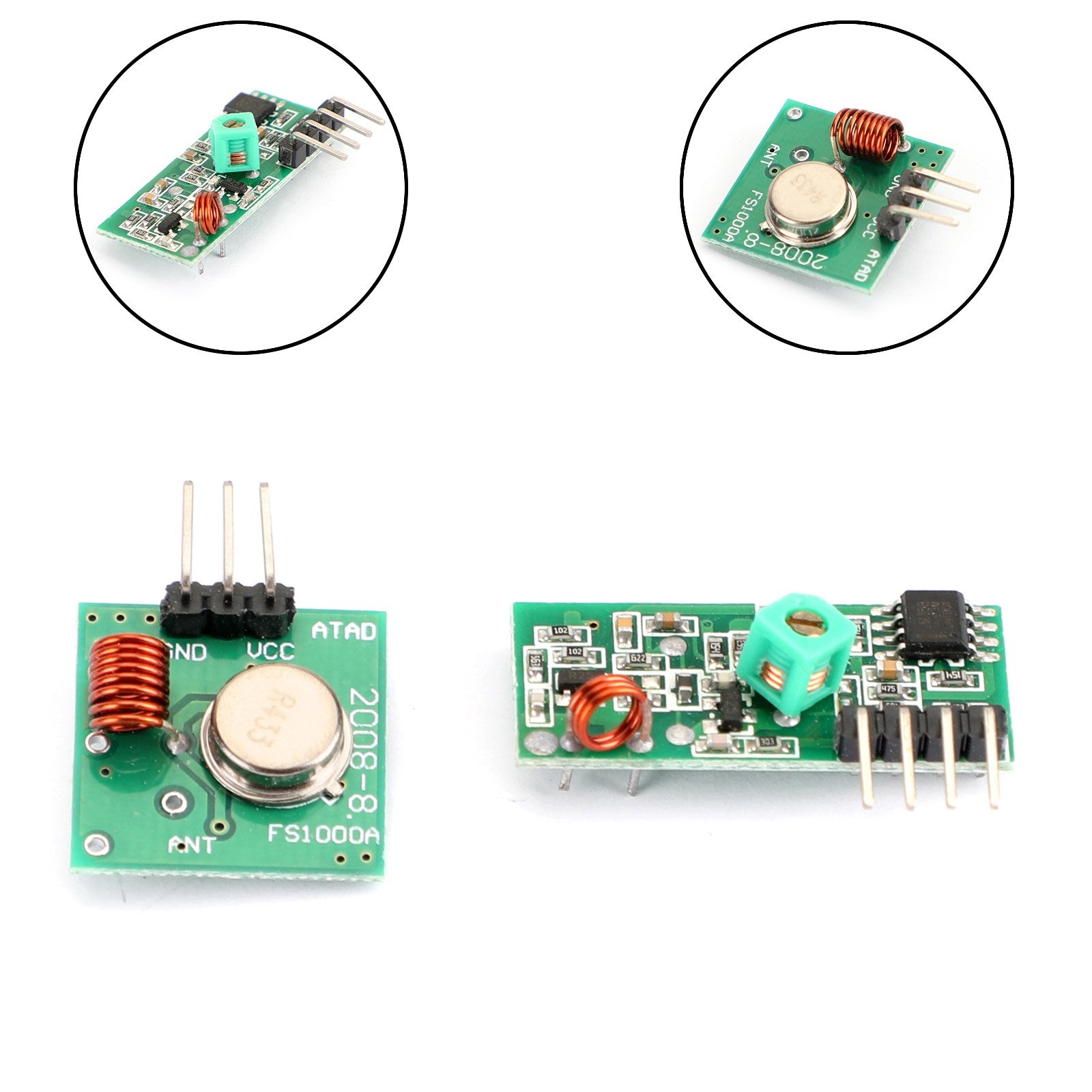

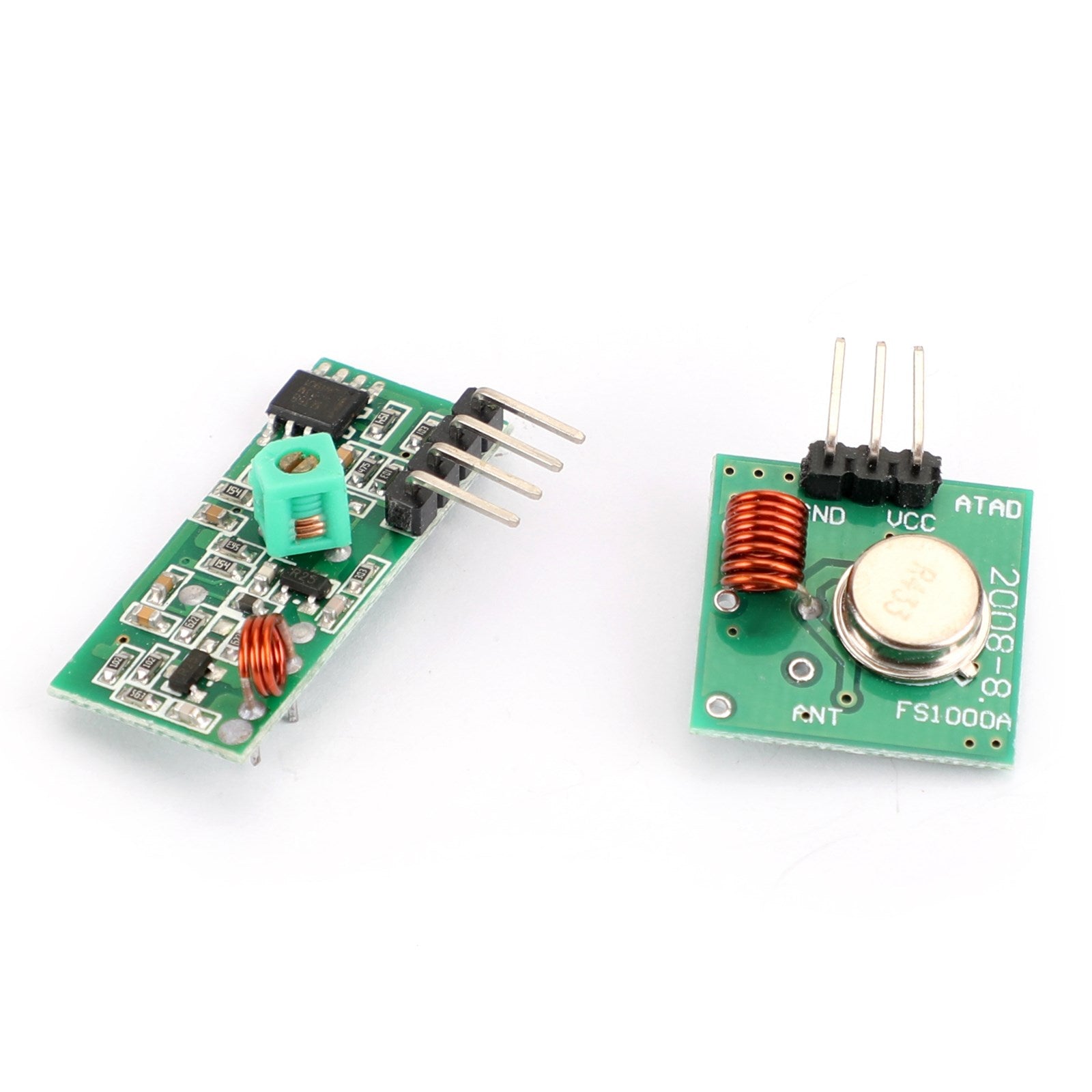

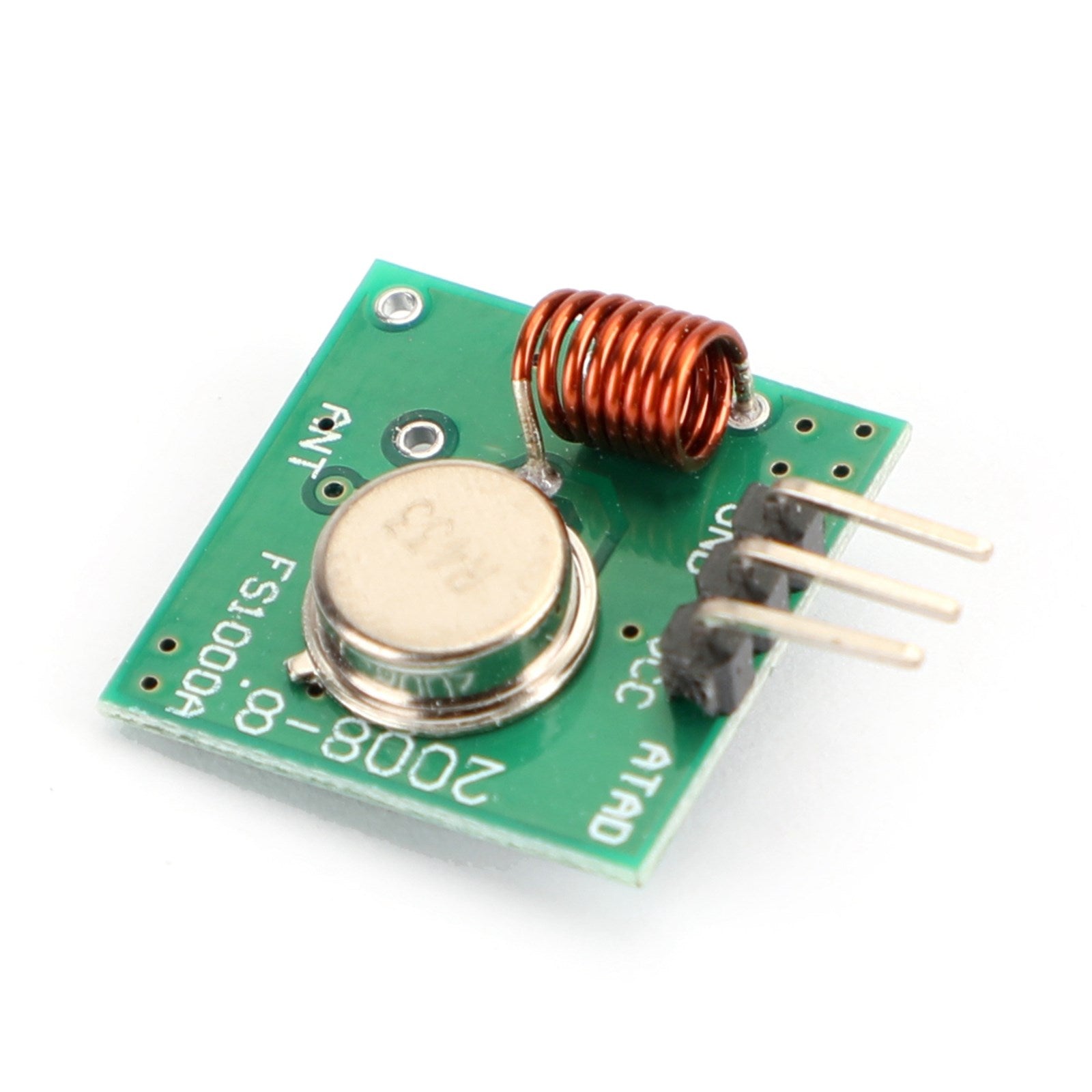

Transmitting head Technical parameters:

1. Product Type: MX-FS-03V

2. Transmission distance: 20-200 meters (voltage is different, the effect is different)

3. Operating voltage: 3.5-12V

4. Overall dimensions: 19 * 19mm

5. Work: AM

6. Transmission rate: 4KB / S

7. Transmitting power: 10mW

8. Transmitting frequency: 433M

9. External antenna: 25cm ordinary multi-core or single core

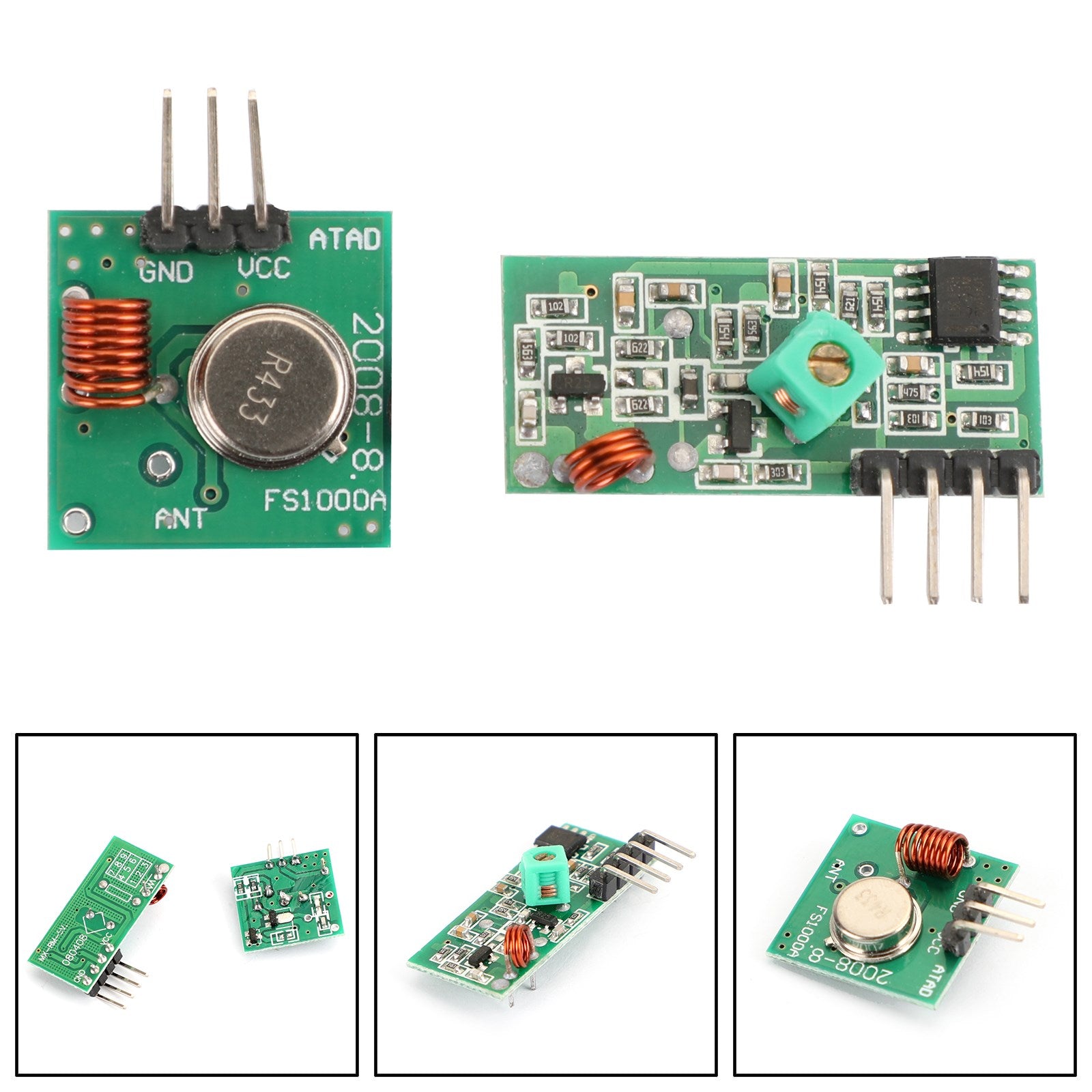

10. Pin arrangement from left to right: (DATA; VCC; GND)

Application environment:

Remote control switch, receiver module, motorcycles, automobile anti-theft products, home security products, electric doors, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control, remote control retractable doors, remote volume gate, pan doors, remote control door opener, door closing device control system, remote control curtains, alarm host, alarm, remote control motorcycle remote control electric cars, remote control MP3.

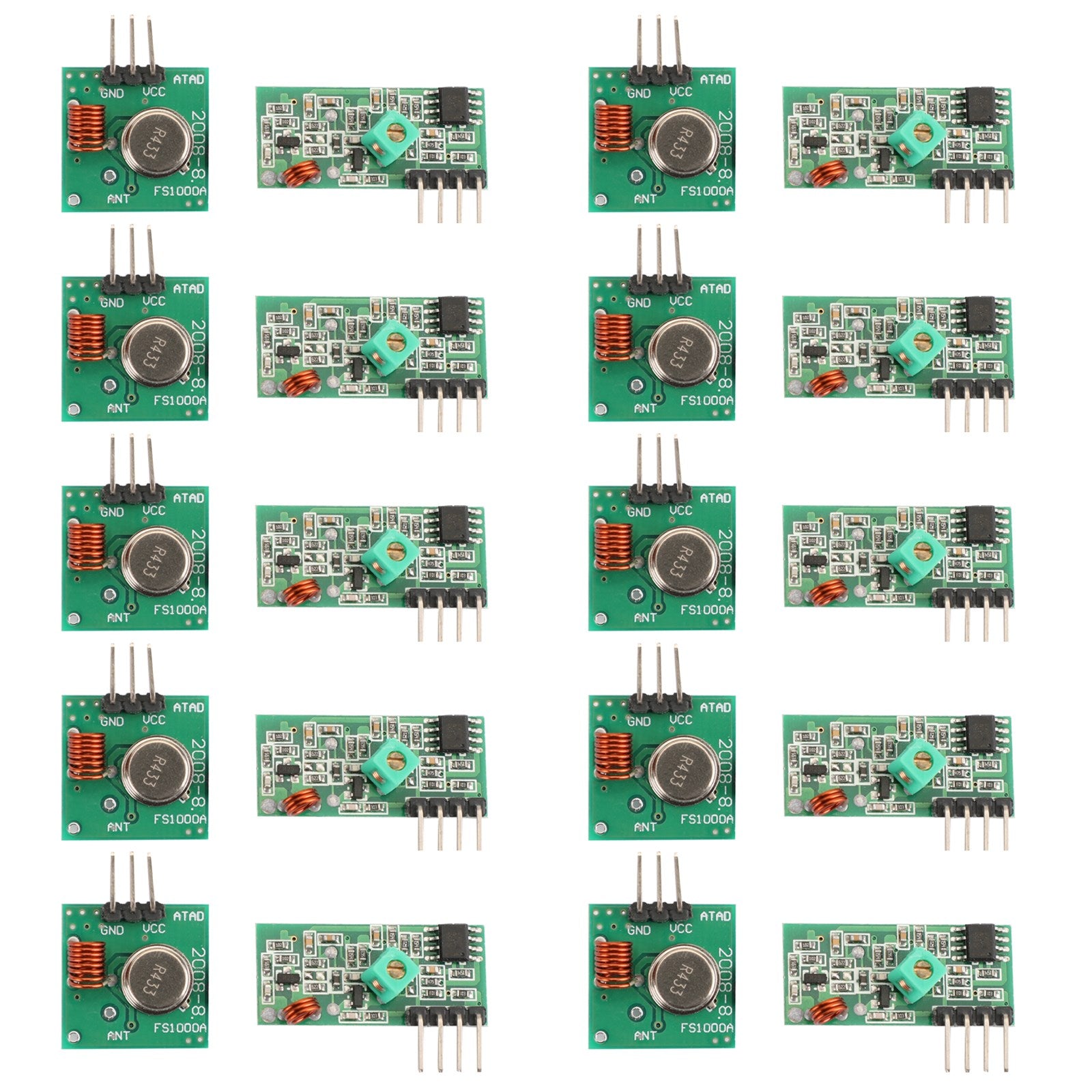

Package included:

10 Set
