Micro3 Fuse Automotive ATL 3 Prong Blade Fuse Holder with 5 x 30A Fuses - Car Electrical Circuit Protection for Vehicles, Trucks, and Marine Applications

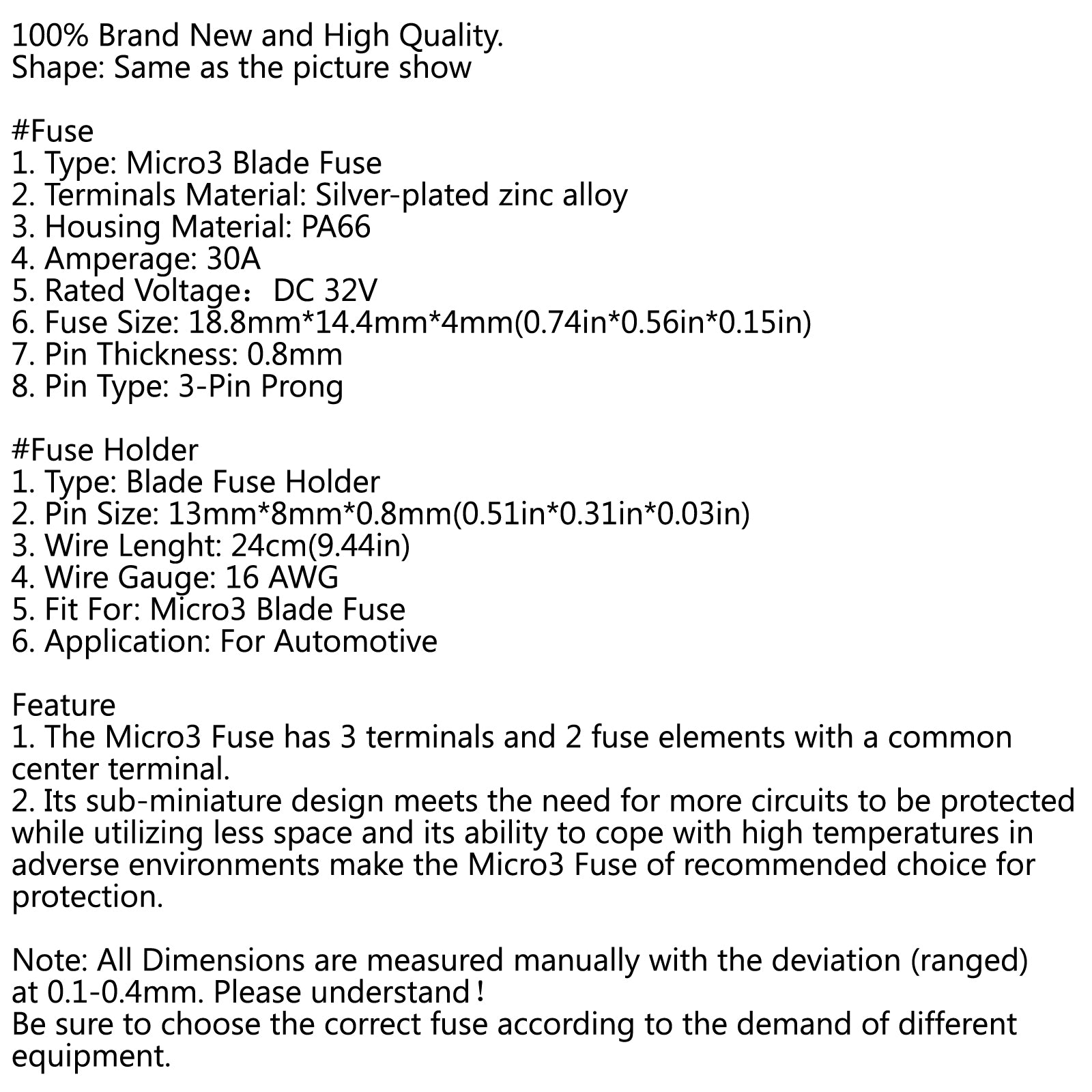

100% Brand New and High Quality.

Shape: Same as the picture show

#Fuse

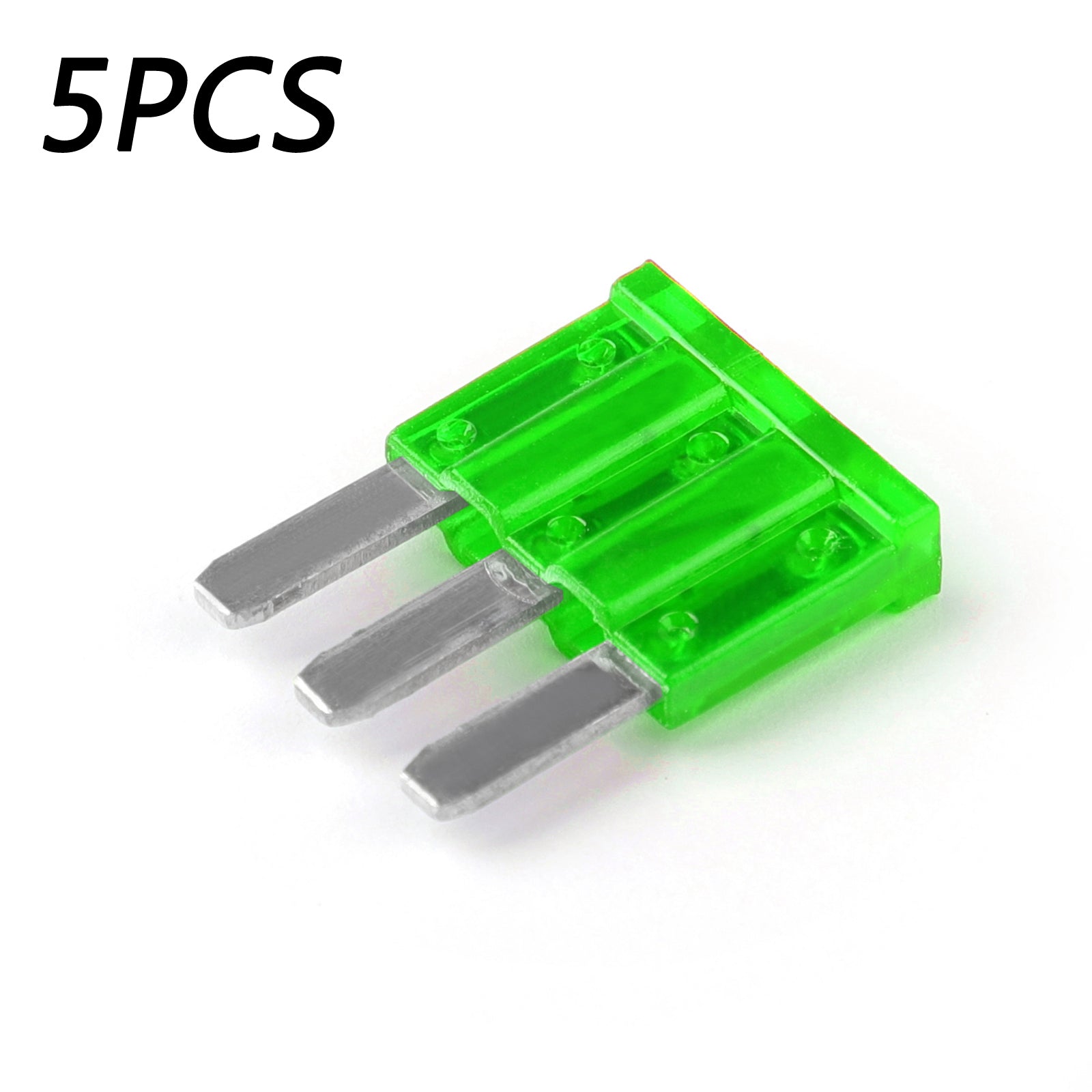

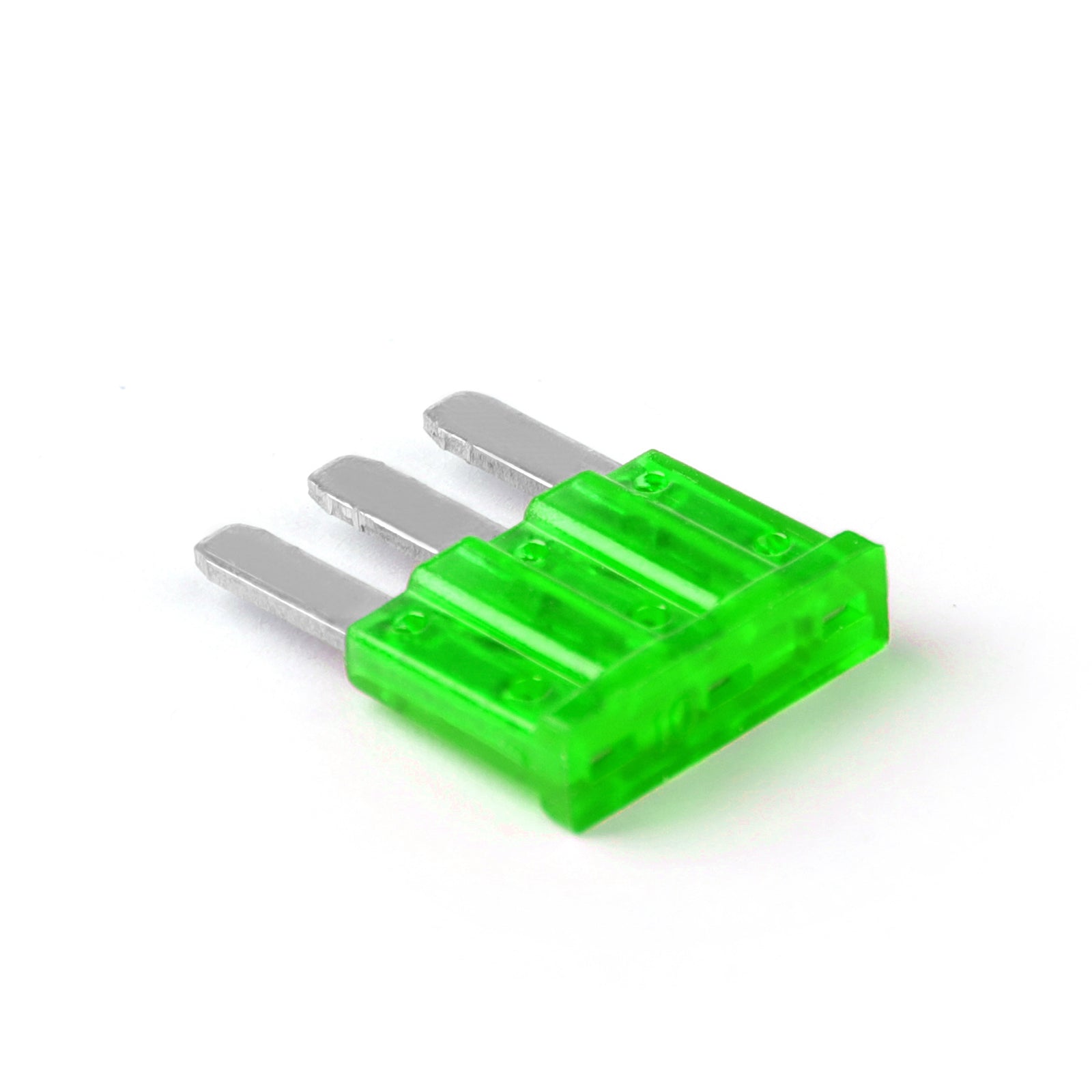

1. Type: Micro3 Blade Fuse

2. Terminals Material: Silver-plated zinc alloy

3. Housing Material: PA66

4. Amperage: 30A

5. Rated Voltage£ºDC 32V

6. Fuse Size: 18.8mm*14.4mm*4mm(0.74in*0.56in*0.15in)

7. Pin Thickness: 0.8mm

8. Pin Type: 3-Pin Prong

#Fuse Holder

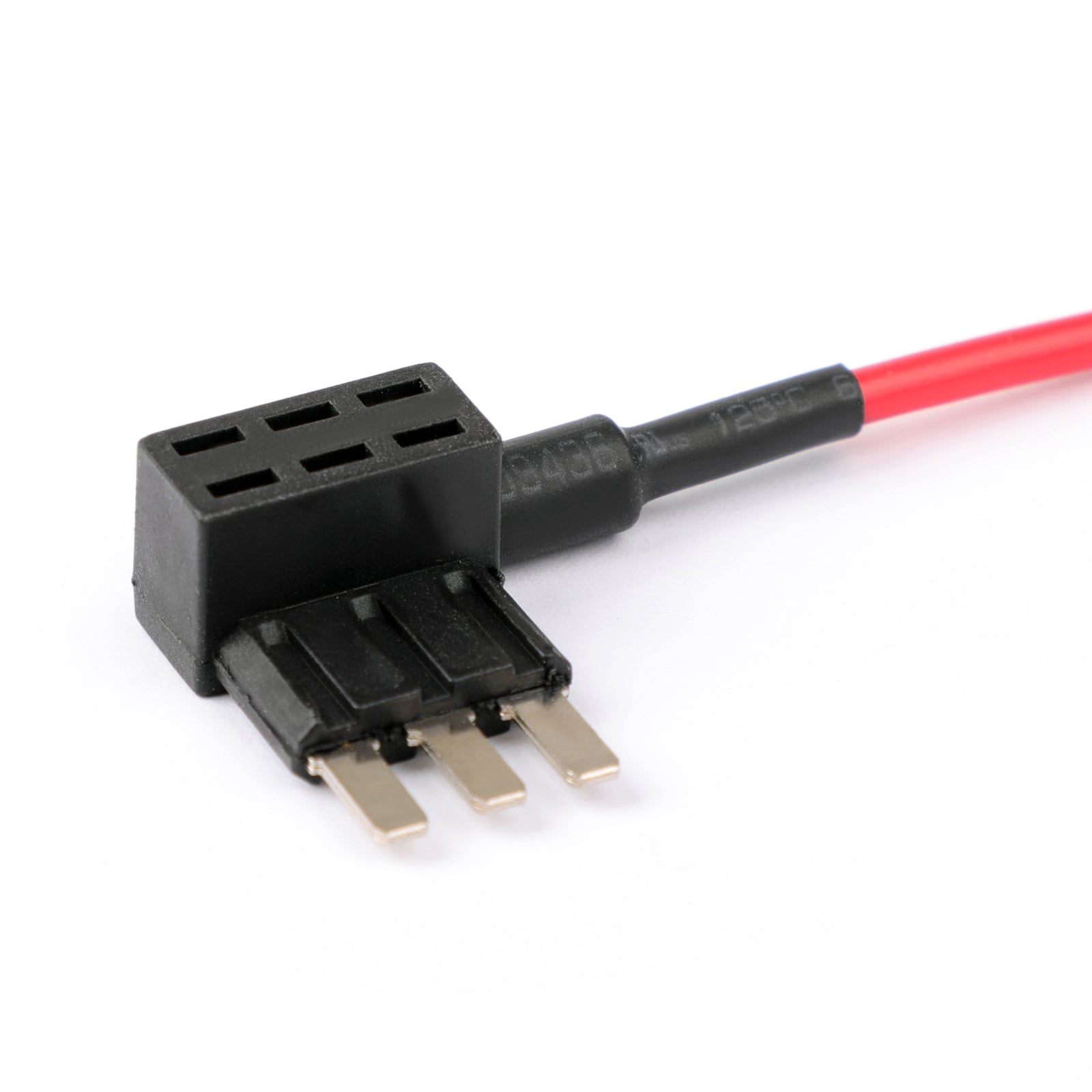

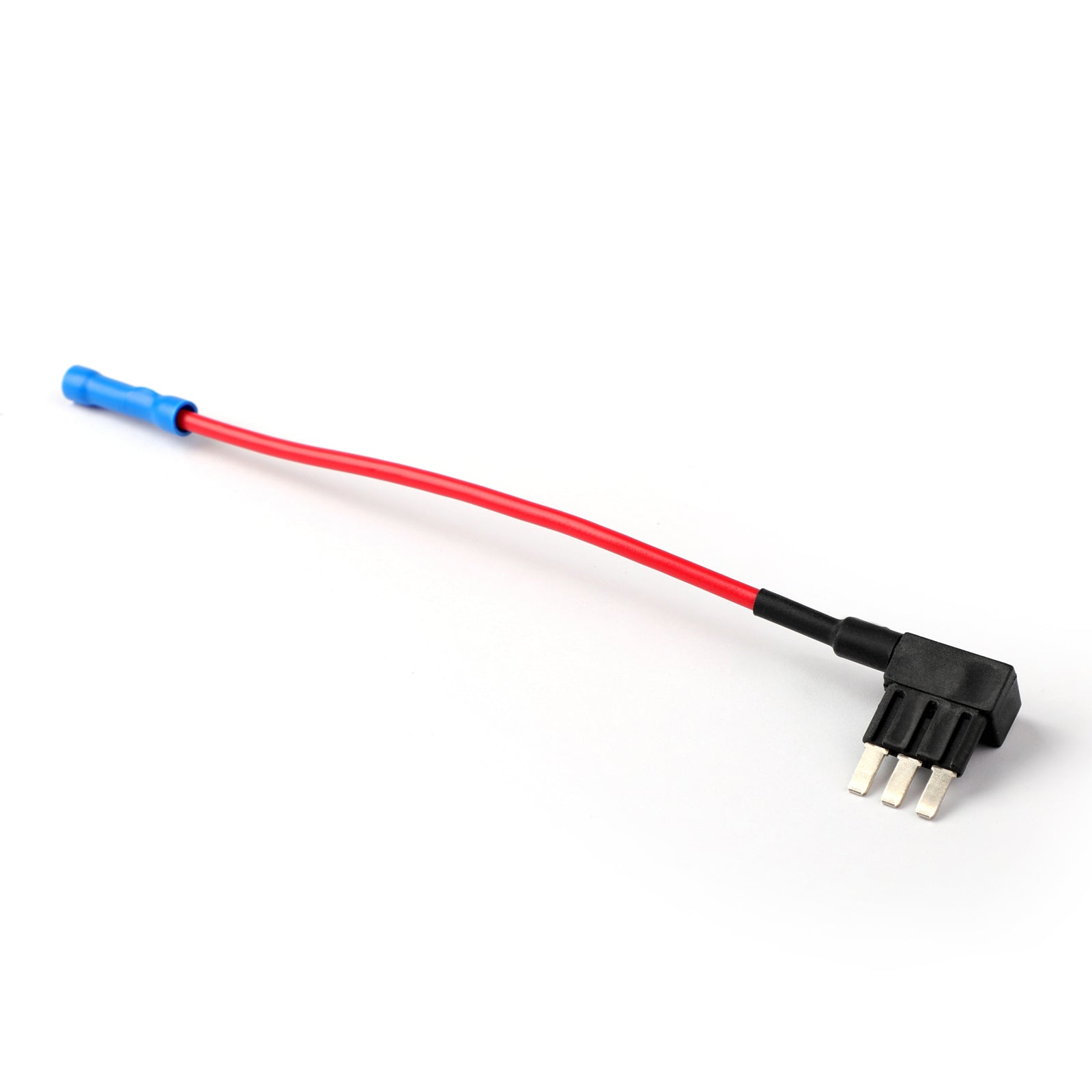

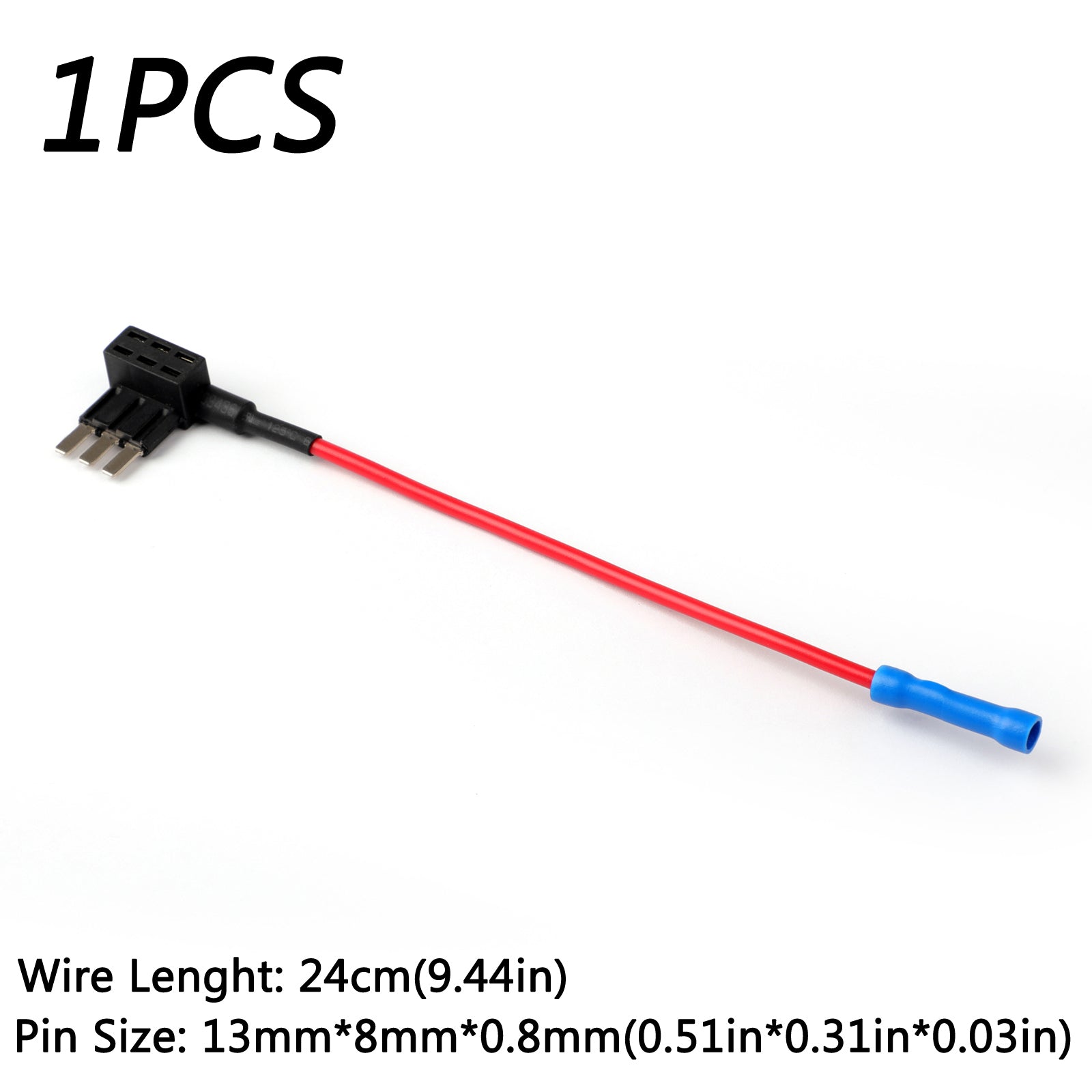

1. Type: Blade Fuse Holder

2. Pin Size: 13mm*8mm*0.8mm(0.51in*0.31in*0.03in)

3. Wire Lenght: 24cm(9.44in)

4. Wire Gauge: 16 AWG

5. Fit For: Micro3 Blade Fuse

6. Application: For Automotive

Feature

1. The Micro3 Fuse has 3 terminals and 2 fuse elements with a common center terminal.

2. Its sub-miniature design meets the need for more circuits to be protected while utilizing less space and its ability to cope with high temperatures in adverse environments make the Micro3 Fuse of recommended choice for protection.

Note: All Dimensions are measured manually with the deviation (ranged) at 0.1-0.4mm. Please understand???br>
Be sure to choose the correct fuse according to the demand of different equipment.

Package included:

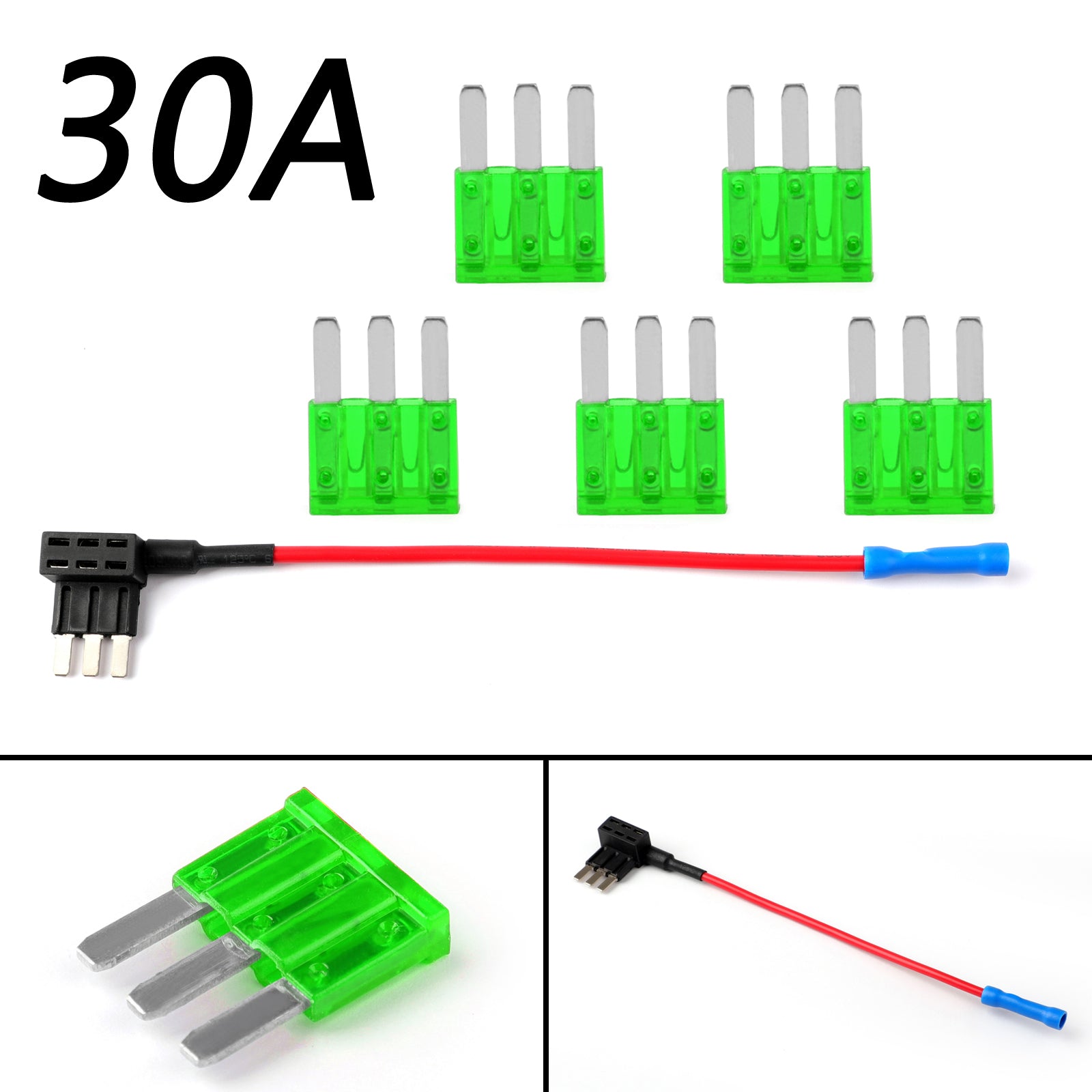

1 ¡Á Micro3 Blade Fuse Holder + 5 ¡Á 30A Micro3 Blade Fuse

Warranty:

Returns: Customers have the right to apply for a return within 60 days after the receipt of the product
24-Hour Expert Online: Solve your installation and product problems
