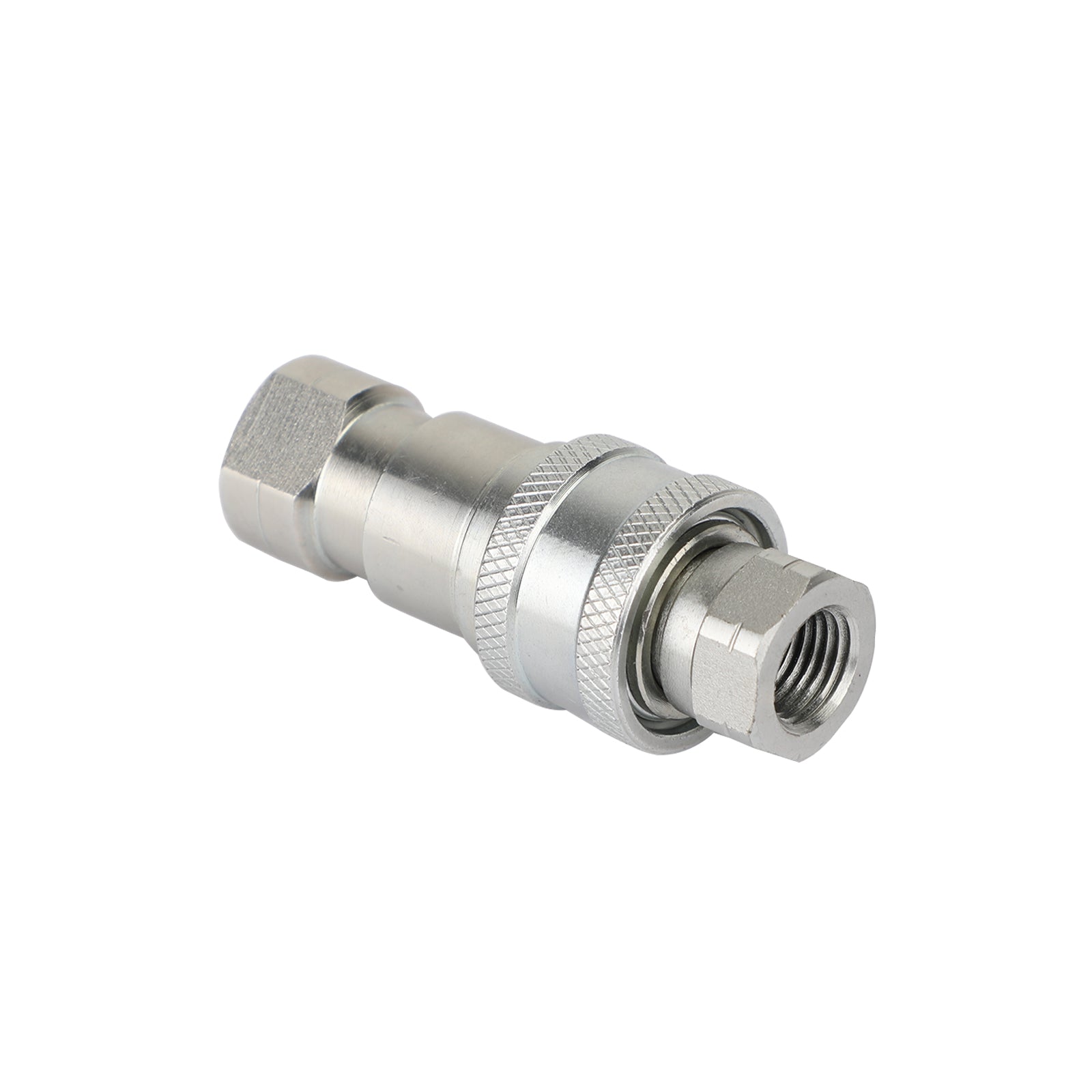

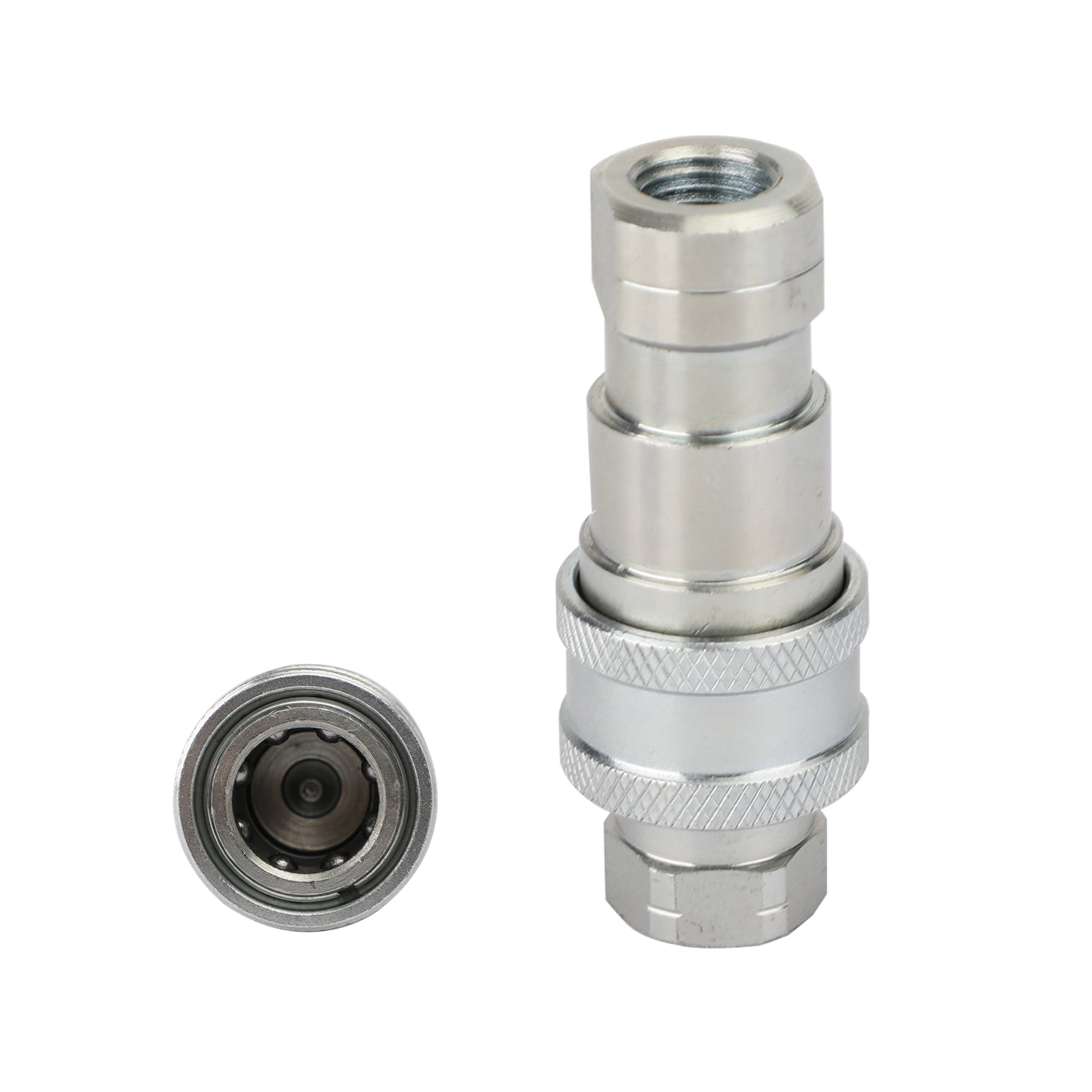

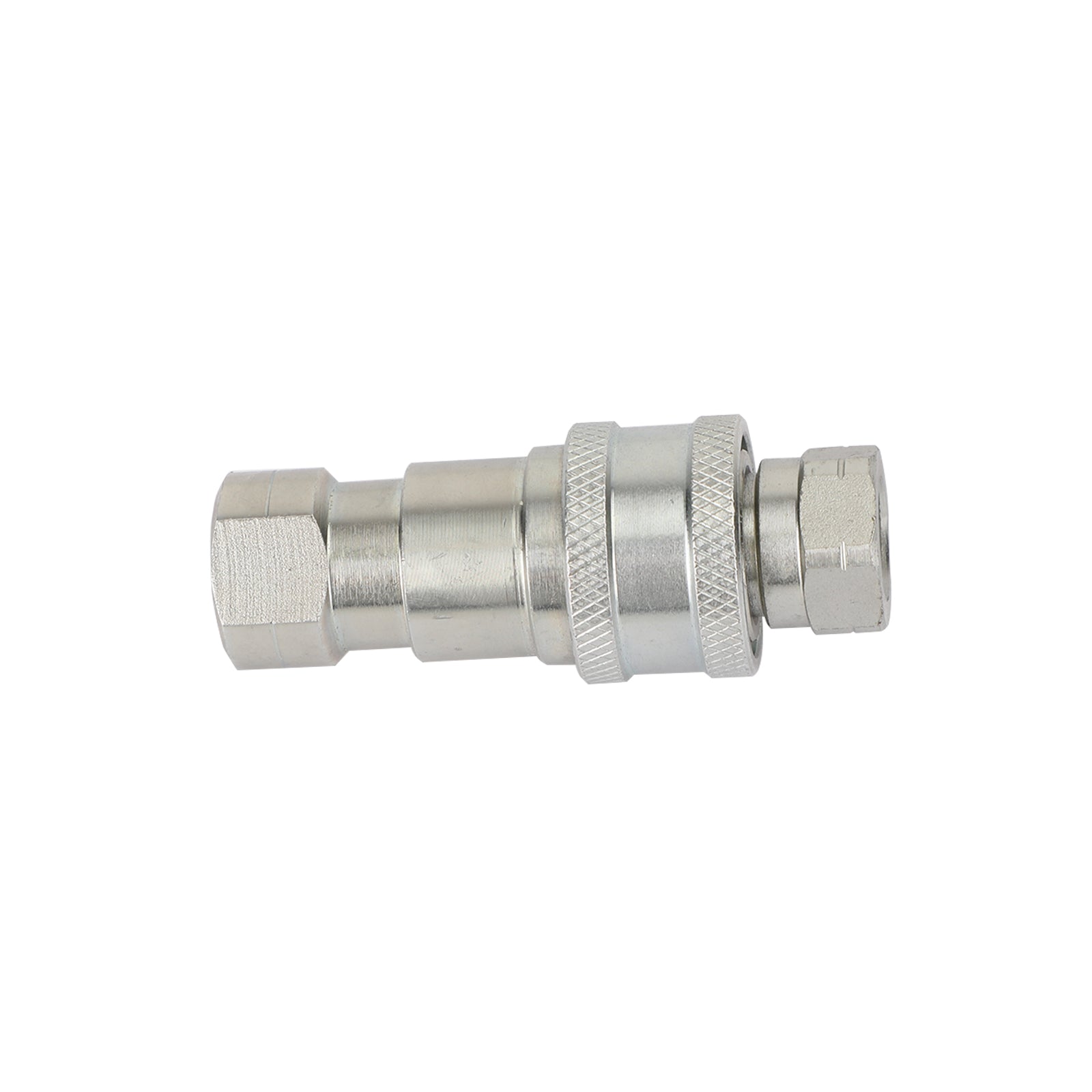

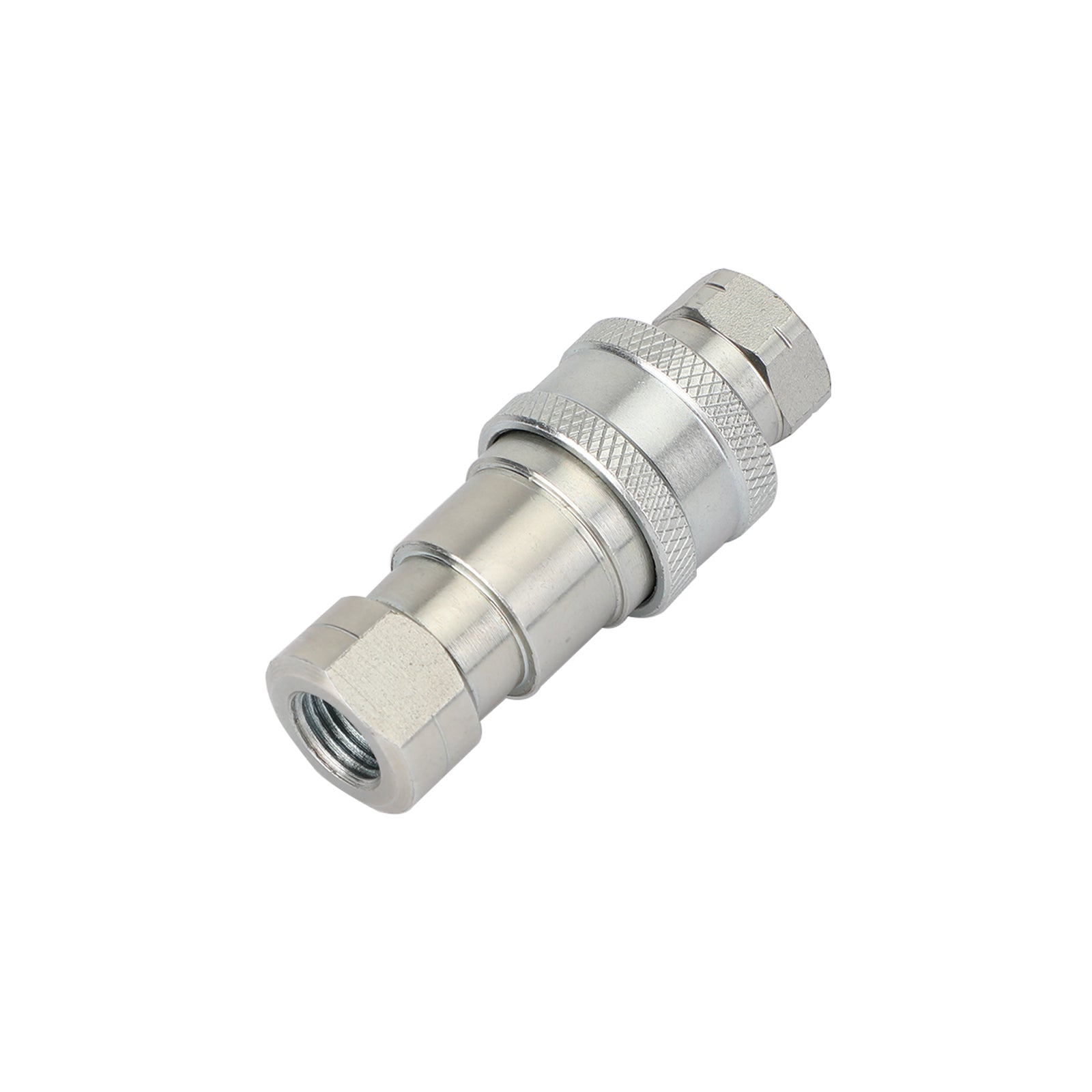

1/4" NPT ISO 7241-B Quick Disconnect Hydraulic Couplings Set - Heavy Duty Hydraulic Hose Fittings for Construction Equipment, Agricultural Machinery & Industrial Applications

Feature:
1:Couples to any standard 1/4¡± ISO 7241-B coupler
2:Heavy knurled sleeves for non-slip grip
3:Our couplers are machined out of carbon steel, which offers corrosion resistance, as well as an extra layer against normal wear and tear.
4:The ISO 7241 B Series of quick disconnect couplers are used on a large spectrum of hydraulic applications such as the aerospace, automotive, electronics industries.

Specifics:
Condition: 100% Brand New
Type: Quick Coupler Set
Material: Carbon Steel
Electroplating Process: ?White Zinc
Body: 1/4"

ISO Standard: ISO 7241-B

Thread: Male 1/4" NPT + Female 1/4" NPT

Rated Flow: 11.5L/Min
Nitrile Rubber (NBR) Seal Temperature Range: -4¡ãF to 212¡ãF
Fluororubber Seal Temperature Range: -4¡ãF to 356¡ãF

Note:
1. Please do not use it for fluids other than applicable fluids.
2. Do not exceed the maximum use pressure limit during use.
3. Do not use it outside the operating temperature range to prevent wear or leakage of the sealing material.
4. Do not hit, bend, or stretch artificially to prevent damage.
5. Do not use it in places mixed with metal powder or sand to prevent poor work or leakage.
6. For threaded installation, do not exceed the maximum tightening torque during installation to prevent damage.
7. Do not use hoses with cracks to prevent leakage or falling off.
8. If it is used in a machine with vibration or impact, it will reduce the durability.
9. The fluid used must be clean fluid filtered by a filter.
10.Do not disassemble the quick connector.
11.Please allow 1-5mm errors due to manual measurement.

Package Included:

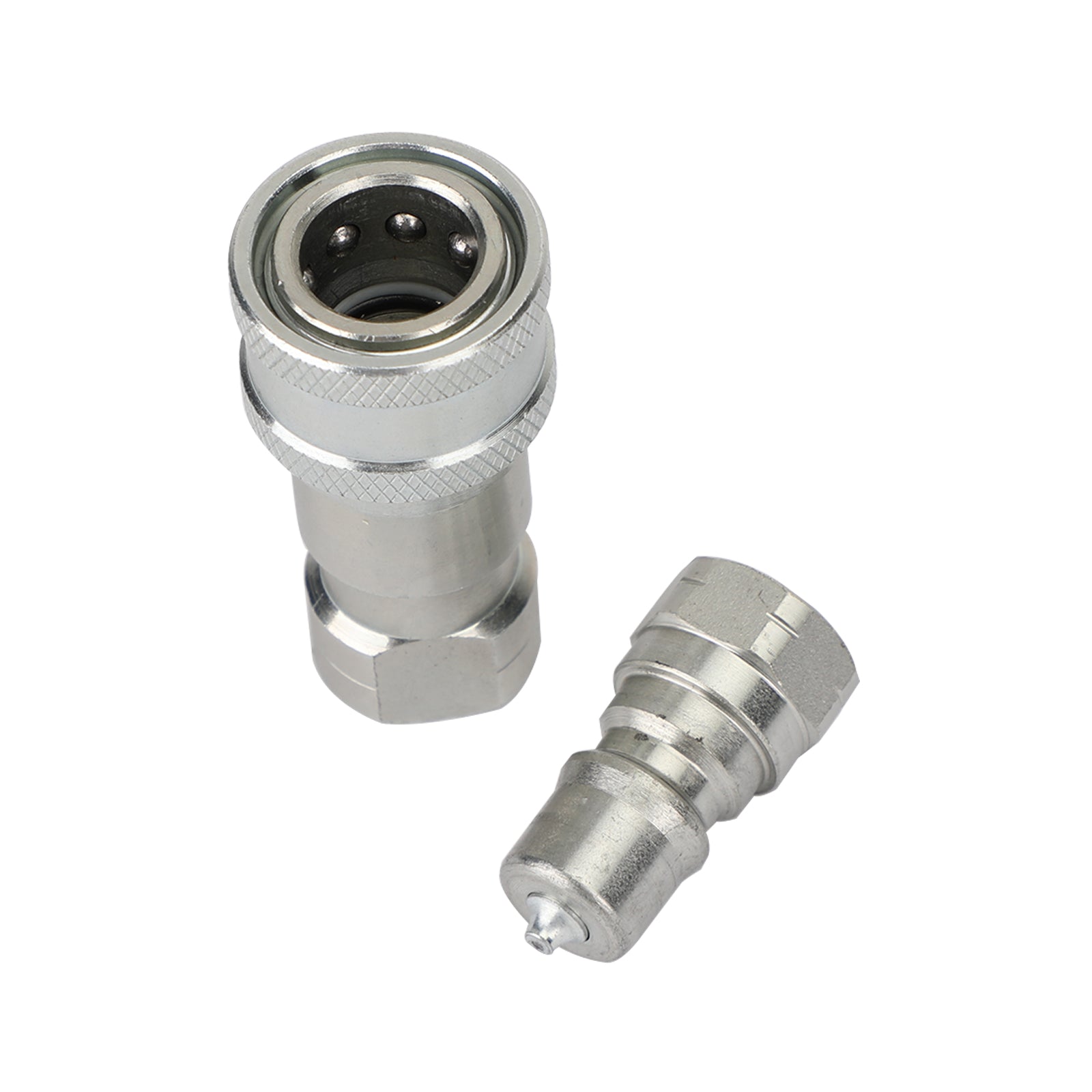

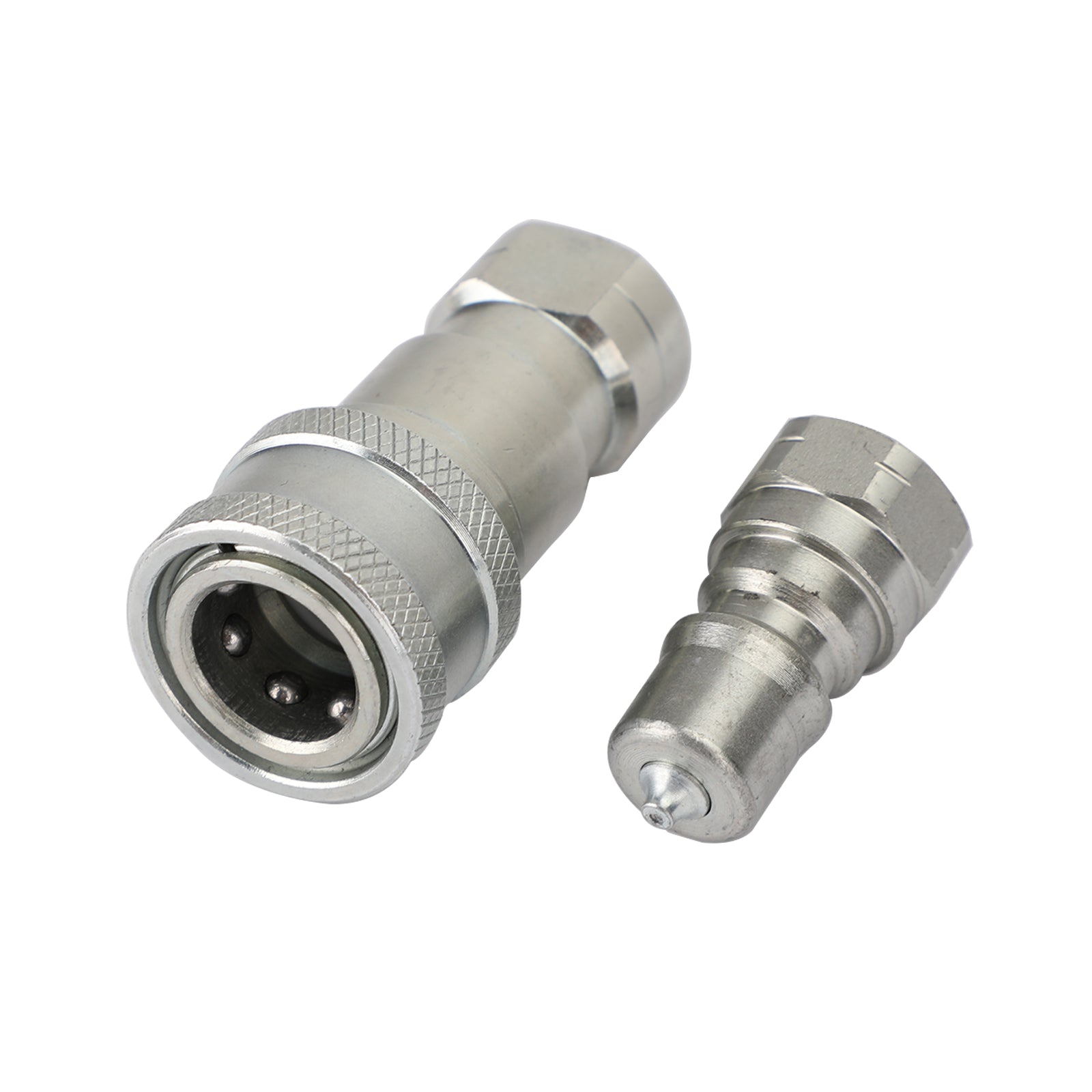

1x Female Couplers
1x Male Couplers

Shipping:
Free Shipping
Delivery Time: 2-6 working days

Warranty:
Returns: Customers have the right to apply for a return within 60 days after the receipt of the product
24-Hour Expert Online: Solve your installation and product problems
